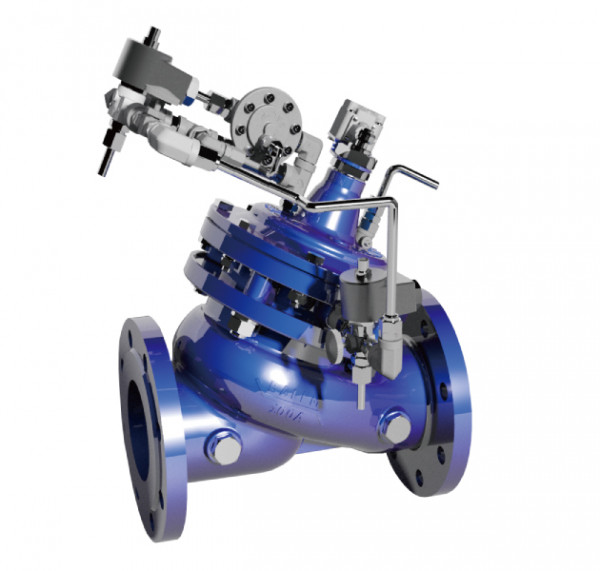

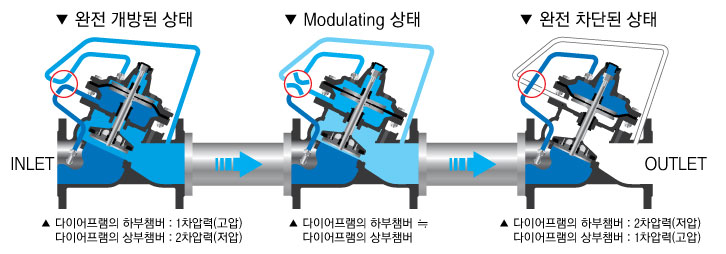

Pneumatic Pump Control Valve (Model 139-910)

specification

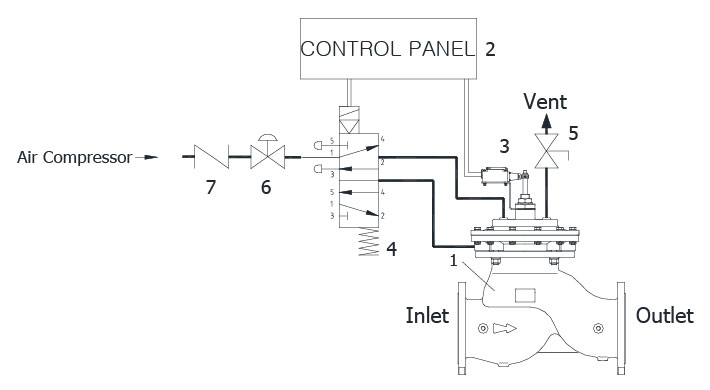

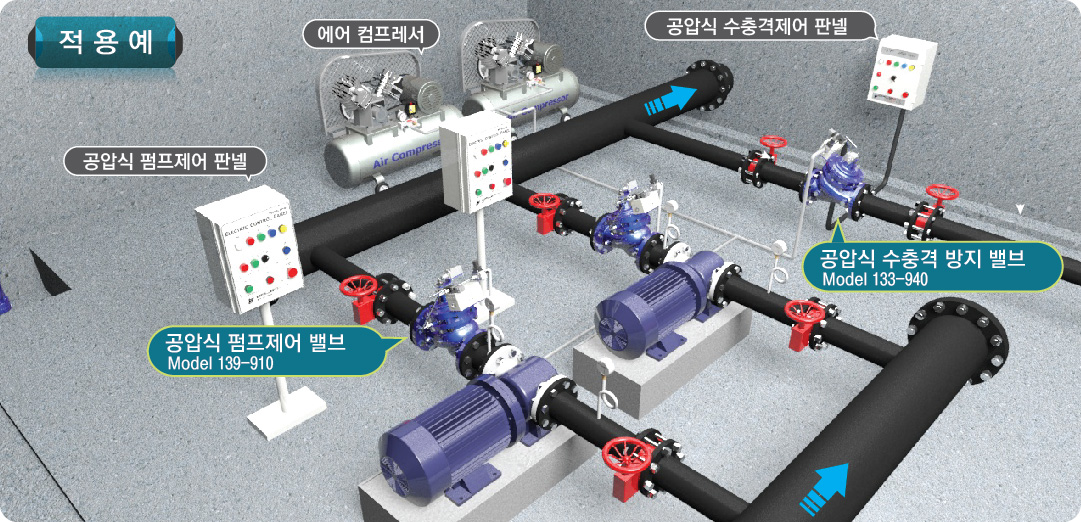

number	Components
One	BALEM 130 (Robocon Valve)
2	Control Panel (Optional)
3	Limit Switch
4	5-Way Solenoid Valve
5	Cock Valve
6	Air Regulator
7	Check Valve
Optional	Air Compressor

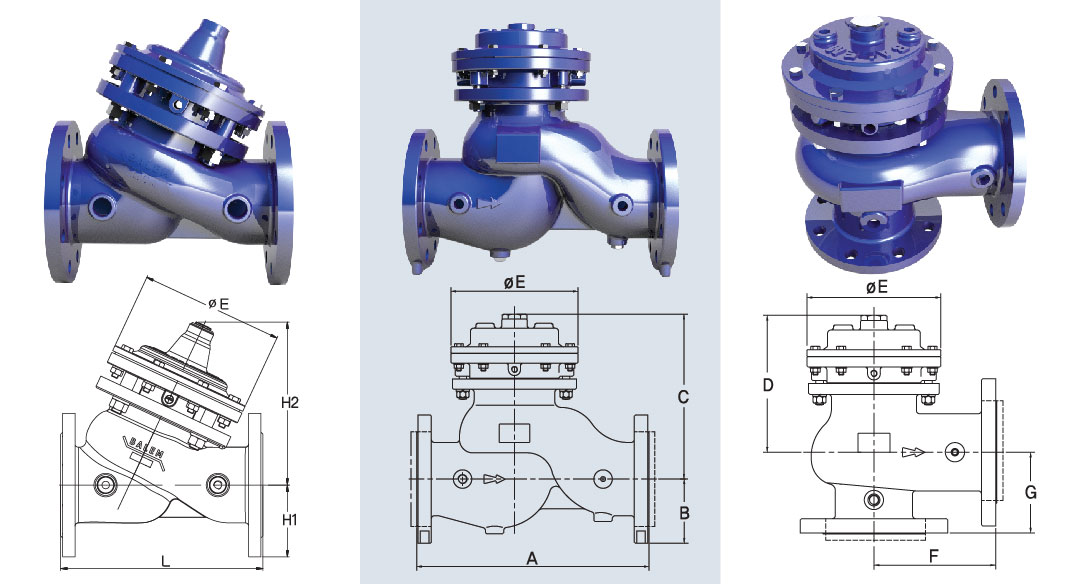

Y-type Globe type flange type

Up-right Globe Flanged Type

Angle type flange type

▼ Y-type Globe type valve size (mm)

valve size	50	65	80	100	125	150	200	250	300	350	400	500	600	700	800	900	1000
L	230	290	310	350	400	480	600	610	700	730	910	1010	1200	1400	1480	1650	1800
H1	78	88	100	110	125	143	175	205	230	265	300	380	420	500	565	590	640
H2	188	211	236	270	333	353	461	519	615	629	753	893	1030	1255	1412	1461	1584
ØE	135	154	180	220	260	305	380	455	545	545	705	794	934	1160	1215	1315	1400

▼ Up-right Globe & Angle type valve size (mm)

valve size	50	80	100	150	200	250	300
A	238	305	381	508	645	756	864
B	78	93	105	140	165	200	223
Cmax	200	240	275	375	470	535	625
Dmax	157	179	206	284	360	420	465
ØE	140	165	208	326	408	497	562
F	119	152	191	254	322	378	432
G	83	102	127	152	203	219	349

※ The tolerance of the inter-face distance dimensions (A, F, L) follows the tolerance standard in <Table 11> of KS B ISO 5752.

Robocon series
shape and size	Up-right Globe / Angle Type	Y-Type Globe
	50 to 300A	50 to 1000A
working pressure	10kgf/cm2, 16kgf/cm2, 20kgf/cm2, 25kgf/cm2
Connection standard	Manufactured according to customer requirements
used fluid	Water / Diesel (Optional) Contact the head office / Fluid temperature: 0°C ~ 80°C

Components	material type
	Standard		Optional
	50A~350A	400A~1000A
Body & Cover & Disc	Ductile Iron	Cast Steel	SSC 13
diaphragm washer	Ductile Iron	Cast Steel	SSC 13
Cover Plugs & Bearings	SSC 13
Shaft & Seat	STS 304
diaphragm	NR / CR / NBR
disc seal	NR / CR / NBR

※ Epoxy coating of NSF/ANSI Standard 61 is standard.

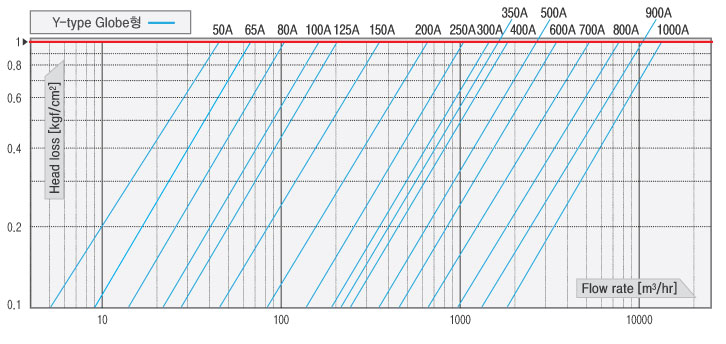

▼ Y-type Globe type flow chart

standard		mm	50	65	80	100	125	150	200	250	300	350	400	500	600	700	800	900	1000
standard		inch	2	2 ^1/2 ” _ _{_}	3	4	5	6	8	10	12	14	16	20	24	28	32	36	40
flow coefficient	Y-Type Globe	Kv	48	72	102	178	221	385	672	973	1382	1610	1834	2863	3816	5311	7508	9130	13085
		Cv	56	84	119	208	258	450	784	1137	1614	1881	2142	3344	4457	6203	8769	10664	15283

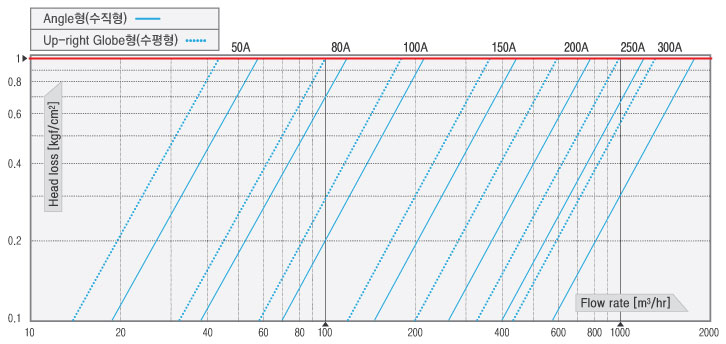

▼ Up-right Globe & Angle Flow Chart

standard		mm	50	80	100	150	200	250	300
standard		inch	2	3	4	6	8	10	12
flow coefficient	Globe Type	Kv	46	97	177	361	618	970	1378
	Globe Type	Cv	54	113	207	422	722	1133	1610
	Angle Type	Kv	57	121	220	459	779	1251	1764
	Angle Type	Cv	67	141	257	536	910	1461	2060

Flow coefficient Kv or Cv = Q/√ΔP, Cv = 1.168Kv

Kv: Flow rate per hour Q (㎥/hr) at differential pressure 1 (kgf/㎠)

Cv: Flow per minute Q (Gal/min) at differential pressure 1 (PSI)

ΔP : pressure difference between both ends of the valve (kgf/cm2 or PSI)

epoxy coating

By applying NSF/ANSI Standard 61 epoxy powder coating to all valves as a basic specification, it has excellent chemical resistance to seawater, certain acids, bases, chemicals and solvents, and provides hygienic water supply to users.

Notes on product selection

One.	Check the flow performance of the product and select a diameter suitable for the required flow rate. If you select too small a bore, the supply flow will be insufficient, and if you select too large a bore, chattering may occur.

2.	Our products are segmented by function. If you want additional features, please contact us.

Items to be stated when selecting a product

model number	standard	shape	product material	Connection standard	working pressure	Main valve accessories
Please check the model number and product name .	50A to 300A	G : Up-right Globe type (horizontal type)	GCD : Ductile Iron STS : Stainless Steel WCB : Cast Steel	According to Customer Request	10kgf/cm216kgf/cm220kgf/cm225kgf/cm2	N : None CL : Model CL-01 ID : Model ID-01 SW : Model SW-01 VOR : Model VOR-01
		A : Angle type (vertical type)
	50A to 1000A	Y : Y-type Globe type

Additional information

One.	In the case of solenoid valves, indicate the power used and IP class. (eg 220V AC, 24V DC, 12V DC/IP65)

2.	In the case of pressure reducing valves and relief valves, indicate the set pressure. (Example: Set-3K)

3.	Check the fluid used. All products produced by our company are for water use, and when used in fluids such as oil, jet oil, seawater, etc., be sure to indicate this information.

writing example	132-010, 100A, G, GCD, 1511-10K, N, set pressure 5
▶ Pressure reducing valve 100A, up-right globe type (horizontal type), body material: ductile iron, working pressure 10K, flange KS B 1511-10K, set pressure 5kgf/cm2
